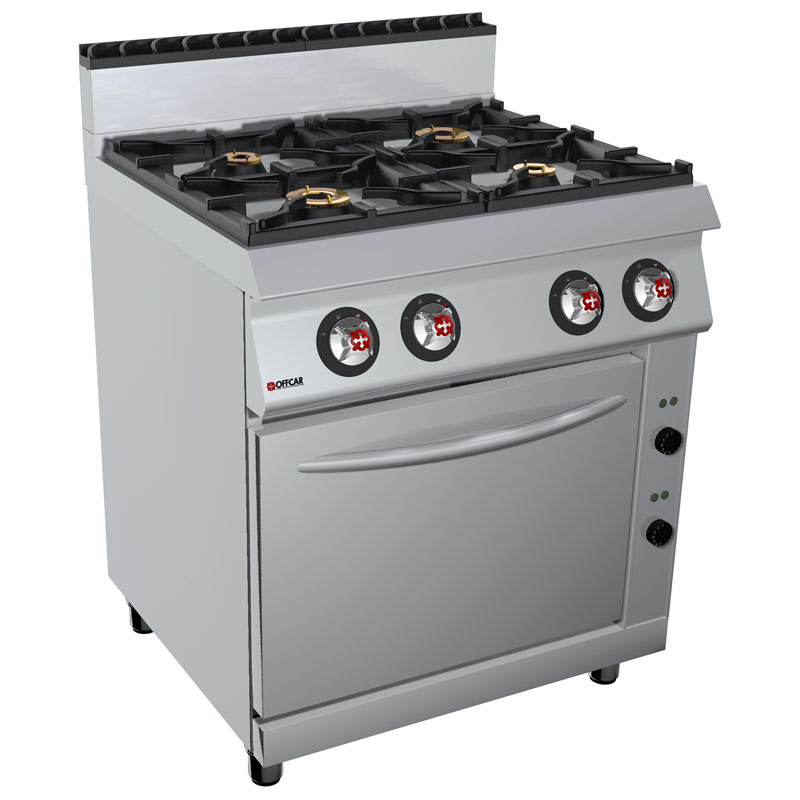

70CBG14FE Line STILE 700 Gas stove range 4 BURNERS GAS RANGE ON ELECTRIC OVEN Features: Work top in AISI 304 stainless steel Top grids are in vitrified cast iron Removable drip-collecting trays in AISI 304 stainless steel with rounded corners Burners in vitrified cast iron with burner cap in brass with double ring and stabilized flame (2 x 4,5 kW, 2 x 7 kW) Valve tap with pilot flame for gas burner ignition Electric oven GN 2/1 heated by indipendent INCOLOY armoured heating elements controlled by thermostats regulating from 50° to 300°C Safety thermostat with manual reset position shelf runners which can be removed for thorough oven cleaning Electronic battery pilot ignition Control panel which can be quickly removed for easy cleaning and maintenance Adjustable AISI 304 stainless steel feet Dimensions 800x730x900 GAS POWER kW 23 GAS CONNECTION Ø 1/2“ ELECTRIC POWER kW 5,5 ELEC. CONNECTION VAC400-3N 50/60Hz Download pdf Technical data (1.43 MB) pdf Exploded view (574 KB) pdf Instruction manual (1.33 MB) default File .dwg (393 KB) pdf Brochure Stile 700 (16.12 MB) Share Share Share Share Gas hotplate Gas and electric fry-tops Gas and electric fryers Gas and electric pasta cookers Automatic lift for pasta cookers Grilles for water radiators and lava stone grills Electric bain maries Tilting bratt pans Boiling pans Work top unit Gas stove range Electric stove range Gas and electric wok range Multifunction bratt pans
