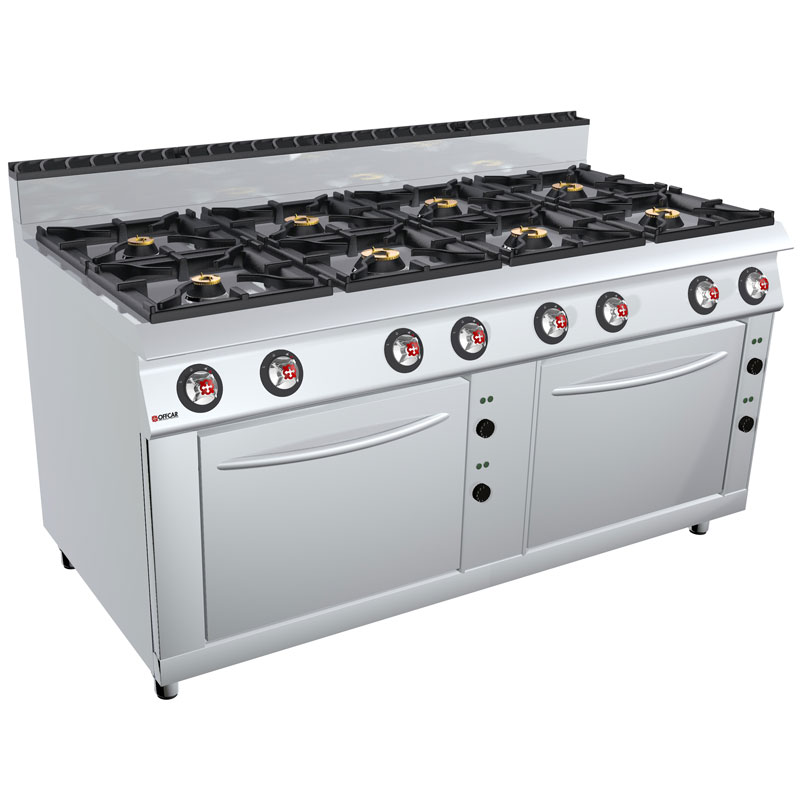

90CBG28FE Line STILE 990 Gas stove range 8 BURNERS GAS RANGE ON ELECTRIC OVEN Features: Work top in AISI 304 stainless steel Top grids are in vitrified cast iron Removable drip-collecting trays in AISI 304 stainless steel with rounded corners Burners in vitrified cast iron with burner cap in brass with double ring and stabilized flame (4 x 4,5 kW, 4 x 10 kW) Valve tap with pilot flame for gas burner ignition 2 Electric ovens GN 2/1 heated by indipendent INCOLOY armoured heating elements controlled by thermostats regulating from 50° to 300°C Safety thermostat with manual reset position shelf runners which can be removed for thorough oven cleaning Electronic battery pilot ignition Neutral cabinet with closing door Dimensions 1800x900x900 GAS POWER kW 58 GAS CONNECTION Ø 1/2“ ELECTRIC POWER kW 11 ELEC. CONNECTION VAC400-3N 50/60Hz Download pdf Technical data (2.59 MB) pdf Exploded view (841 KB) pdf Instruction manual (1.33 MB) default File .dwg (3.45 MB) Brochure STILE 980_990 Share Share Share Share Gas and electric fry-tops Gas and electric fryers Gas and electric pasta cookers Automatic lift for pasta cookers Lava stone grills Tilting bratt pans Boiling pans Work top unit Gas stove range Electric stove range Gas hotplate
