Line STILE 990

9PQG20D

Boiling pans

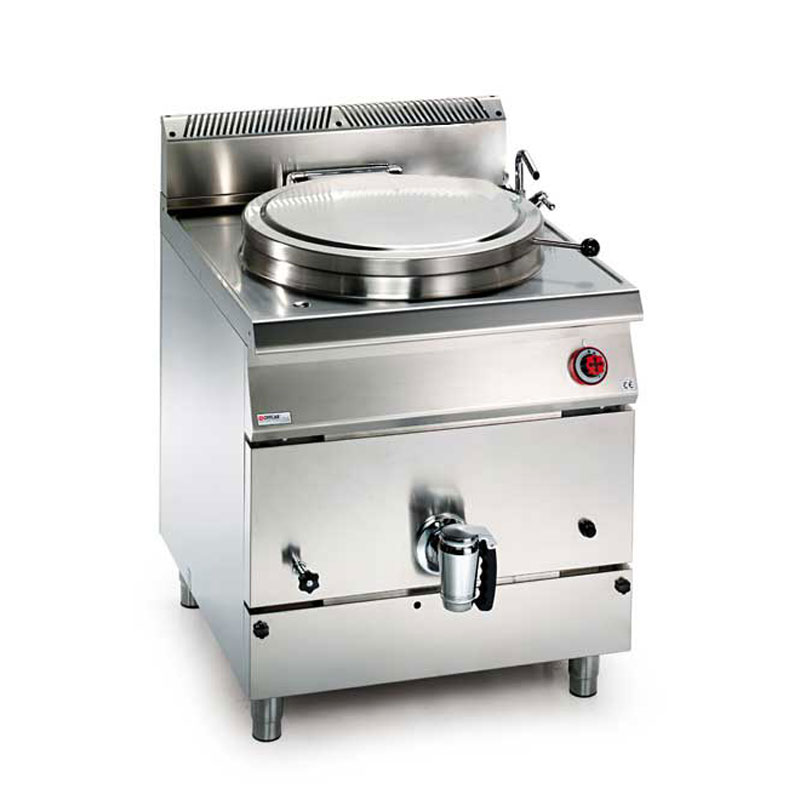

DIRECT GAS BOILING PANS 200 LT.

Features:

External structure and worktop in AISI 304 stainless steel

Tank insulated with bottom in AISI 316 stainless steel

Lid hinged at the back and counter-balanced, with heat-resistant handle

Tank capacity 200 lt.

Tank filling unit in chromium-plated brass

Front drainage tap in chromium-plated brass with heat-resistant handle

Direct gas heating with stainless steel burners with stabilized flame

Valve tap with pilot flame for burner ignition

dimensioni40x40
Dimensions
900x900x900
potenza_gas_40x40
GAS POWER kW
32
allac_gas_40x40
GAS CONNECTION
Ø 1/2“
Download

pdf Technical data (1.03 MB)

pdf Exploded view (132 KB)

pdf Instruction manual (3.05 MB)

default File .dwg (783 KB)

Brochure STILE 980_990

Share this product
Request Info
Request:





STILE 990

Functionality, robustness, ergonomic design and compositional flexibility are the outstanding features of the Style 980-990 project.

The 980-990 Stile series are the answer to the most demanding needs for power, production capacity and attention for details in large workplaces.
