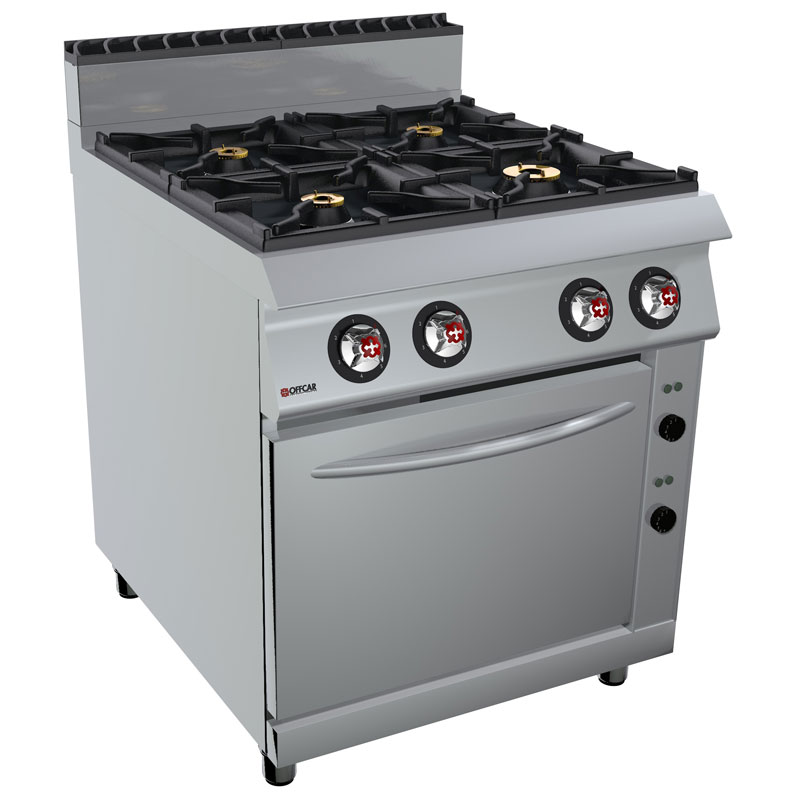

80CBG14FE Line STILE 980 Gas stove range BURNERS GAS RANGE ON ELECTRIC OVEN Features: Work top in AISI 304 stainless steel Top grids are in vitrified cast iron Removable drip-collecting trays in AISI 304 stainless steel with rounded corners Burners in vitrified cast iron with burner cap in brass with double ring and stabilized flame (2 x 4,5 kW, 2 x 10 kW) Valve tap with pilot flame for gas burner ignition Electric oven GN 2/1 heated by indipendent INCOLOY armoured heating elements controlled by thermostats regulating from 50° to 300°C Safety thermostat with manual reset position shelf runners which can be removed for thorough oven cleaning Dimensions 800x900x900 GAS POWER kW 29 GAS CONNECTION Ø 1/2“ ELECTRIC POWER kW 5,5 ELEC. CONNECTION VAC400-3N 50/60Hz Download pdf Technical data (1.40 MB) pdf Exploded view (575 KB) pdf Instruction manual (1.33 MB) default File .dwg (574 KB) Brochure STILE 980_990 Share Share Share Share Gas stove range Electric stove range Gas and electric wok range Gas hotplate Gas and electric fry-tops Gas and electric fryers Gas and electric pasta cookers Automatic lift for pasta cookers Grilles for water radiators and lava stone grills Electric bain maries Tilting bratt pans Boiling pans Work top unit
